The TGB-090 is a vertically designed duplex that offers generous private spaces, multiple suites, and excellent outdoor connections, making it ideal for urban or high-density developments.
Conditioned Living Area per Unit: 2,506 Sq. Ft.
Total Area Under Roof: 3,199 Sq. Ft. (Includes Garage, Porches, and Patios)

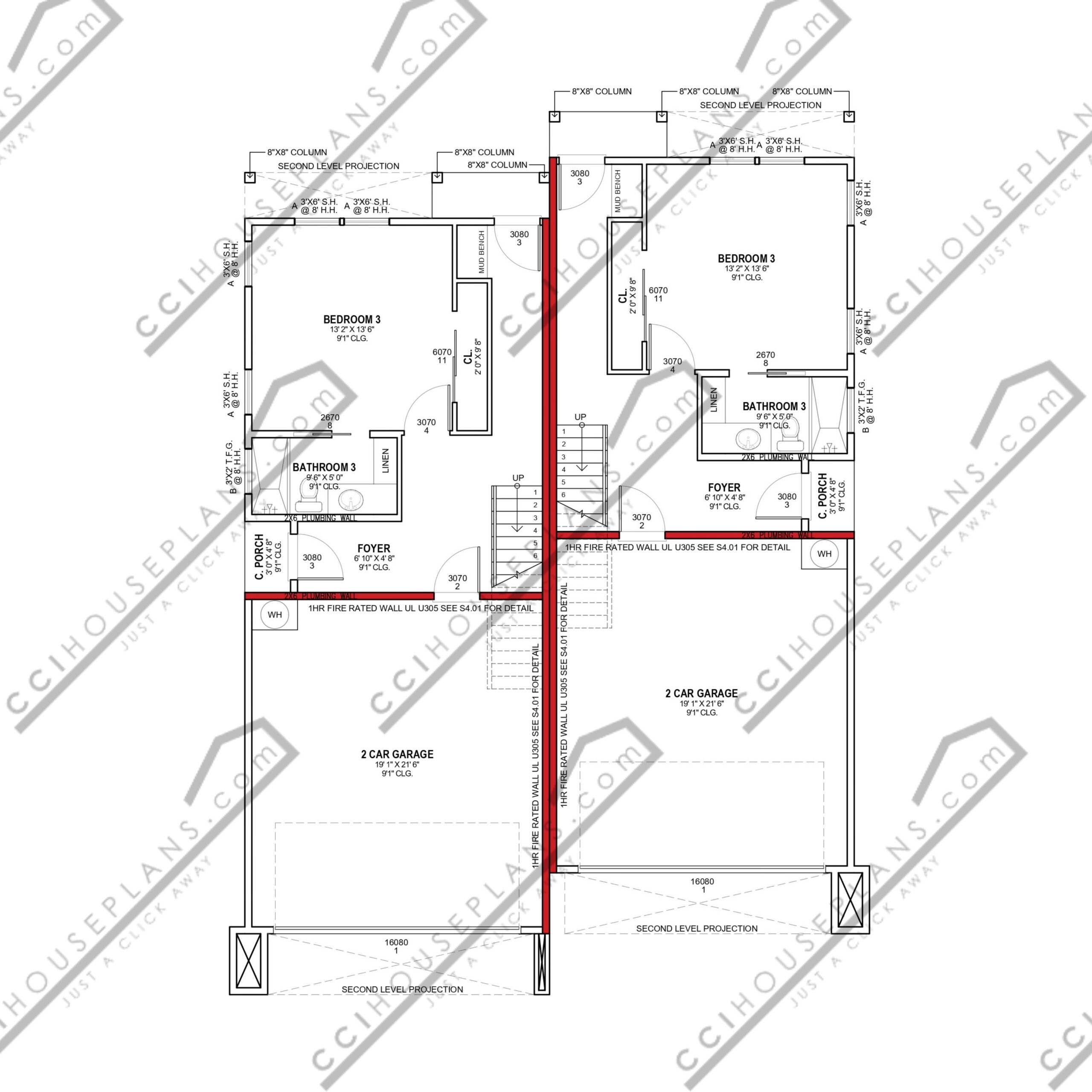

Flexible First-Level Suite: The first level includes a guest bedroom or home office with its own private bathroom, providing versatility for visitors or work-from-home needs.

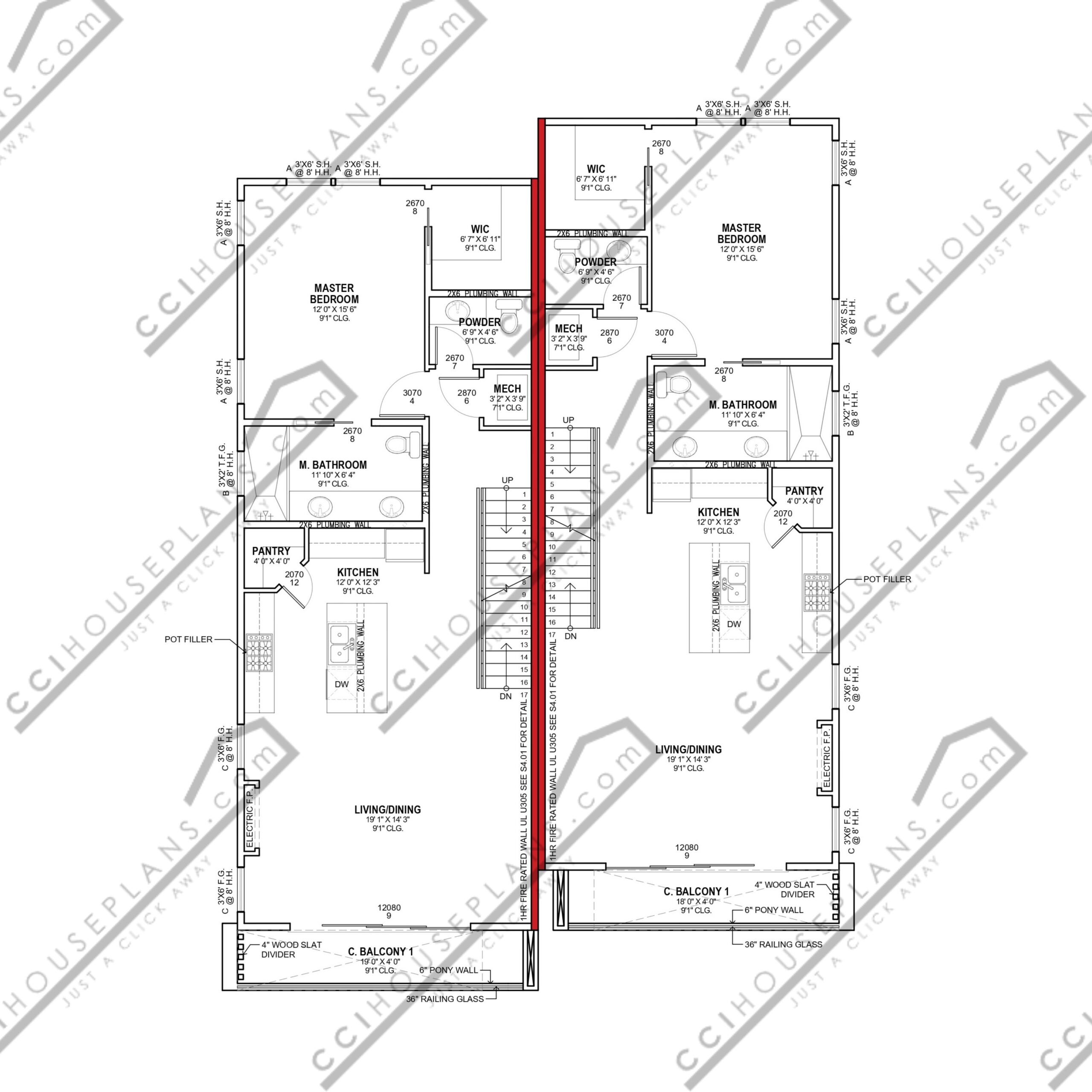

Main Living Level: The second level hosts the primary suite with its bathroom and walk-in closet, along with an open-concept kitchen, dining, and living area that opens to a front-facing balcony.

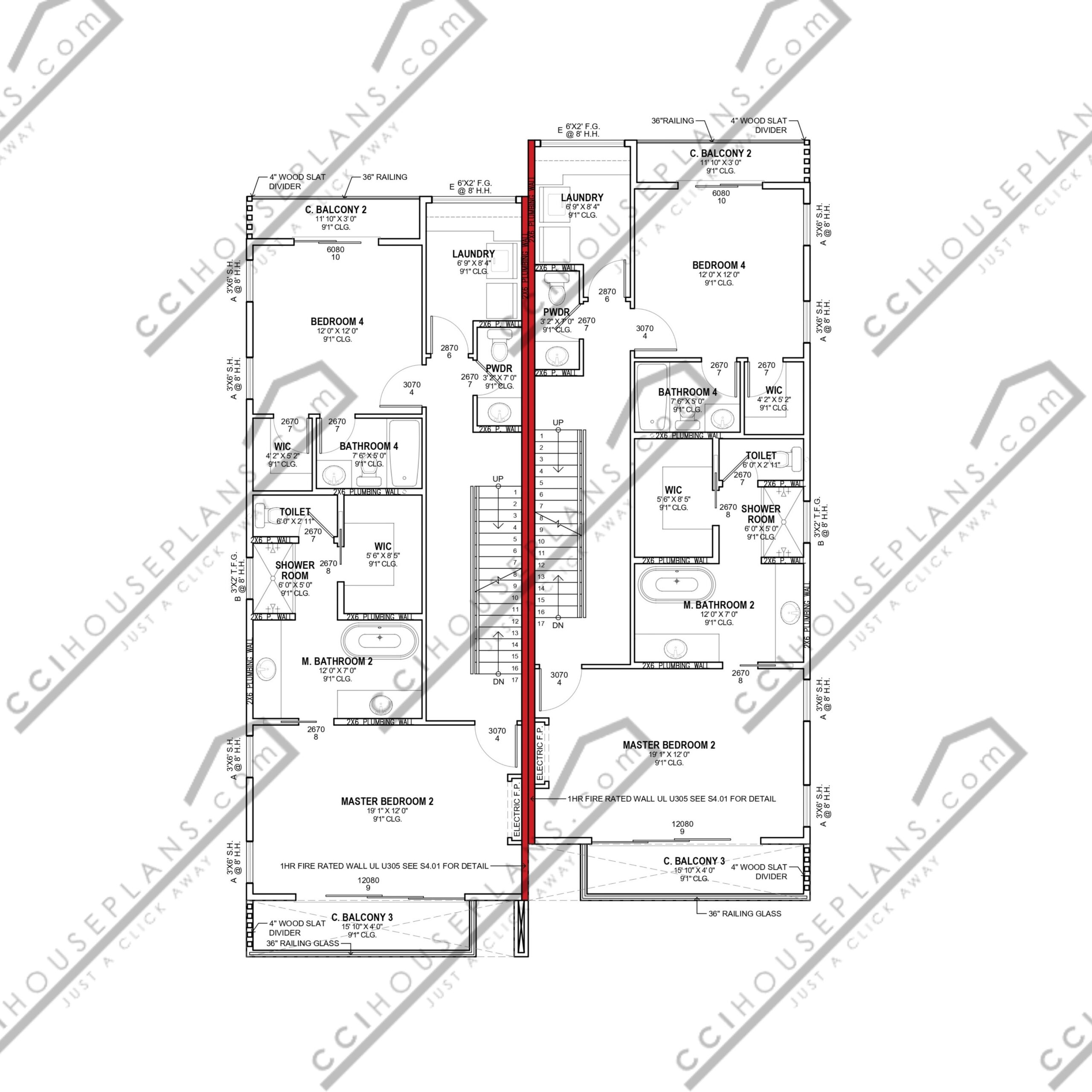

Upper-Level Suites: The third level includes an additional primary bedroom with its own bathroom and walk-in closet, plus a fourth bedroom with an ensuite bathroom. Both bedrooms enjoy private balconies.
Laundry Convenience: Laundry facilities are strategically located on the third level for easy access from the bedrooms.
Future Expansion Option: This floor plan allows for the addition of a fourth level, ideal for a rooftop terrace or entertainment space.
$6,398.00
Scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing, fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
Plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
This site plan is not included in your downloadable file. A survey must be provided in order to generate a site plan.
These are generic foundations creating/using basic information and do not reflect exact soil conditions for this site, it is recommended that you engage a certified engineer to conduct a soil survey to ensure that your project is in compliance.
Location of heating and air equipment and duct work.
Drawings showing the actual plumbing pipe sizes and locations.
This is a separate service only provided upon request.
