The TGB-051 is a well-planned one-story home featuring a beautiful traditional exterior and a functional layout that maximizes comfort and efficiency.
Conditioned Living Area: 1,843 Sq. Ft.
Traditional Elevation: Classic exterior design with timeless appeal.
Open-Concept Living: Living room and kitchen flow seamlessly, with the dining area positioned toward the front of the home.
Primary Suite: Spacious primary bedroom with a large bathroom and separate his-and-her closets.
Secondary Bedrooms: Two additional bedrooms located on the opposite side of the home, sharing a Jack-and-Jill style bathroom.
Powder Room: Strategically placed near the Jack-and-Jill bath to efficiently share plumbing.
Ample Storage: All bedrooms include their own closets.
For a similar layout, refer to TGB-045.
$2,578.00

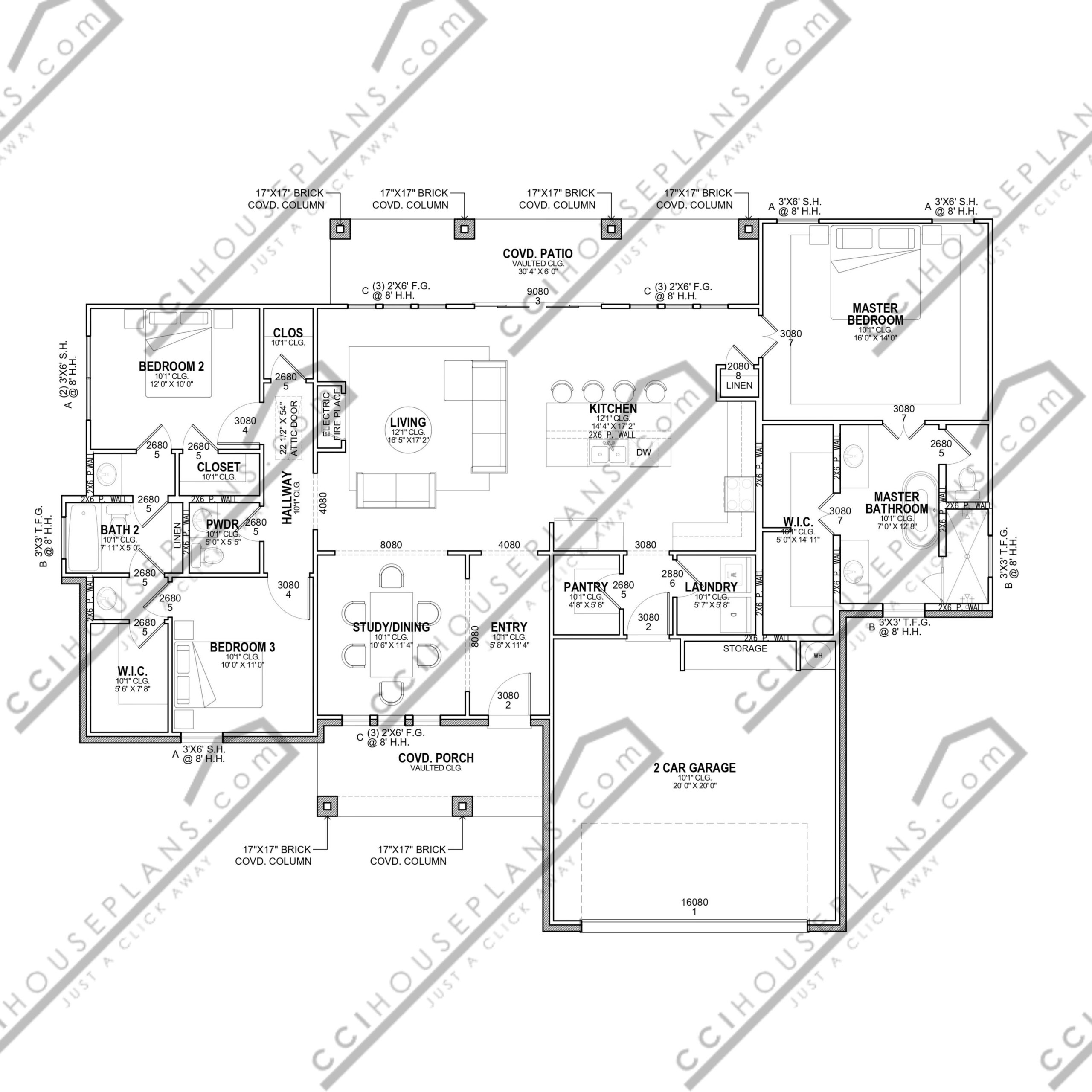

Scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing, fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
Plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
This site plan is not included in your downloadable file. A survey must be provided in order to generate a site plan.
These are generic foundations creating/using basic information and do not reflect exact soil conditions for this site, it is recommended that you engage a certified engineer to conduct a soil survey to ensure that your project is in compliance.
Location of heating and air equipment and duct work.
Drawings showing the actual plumbing pipe sizes and locations.
This is a separate service only provided upon request.
