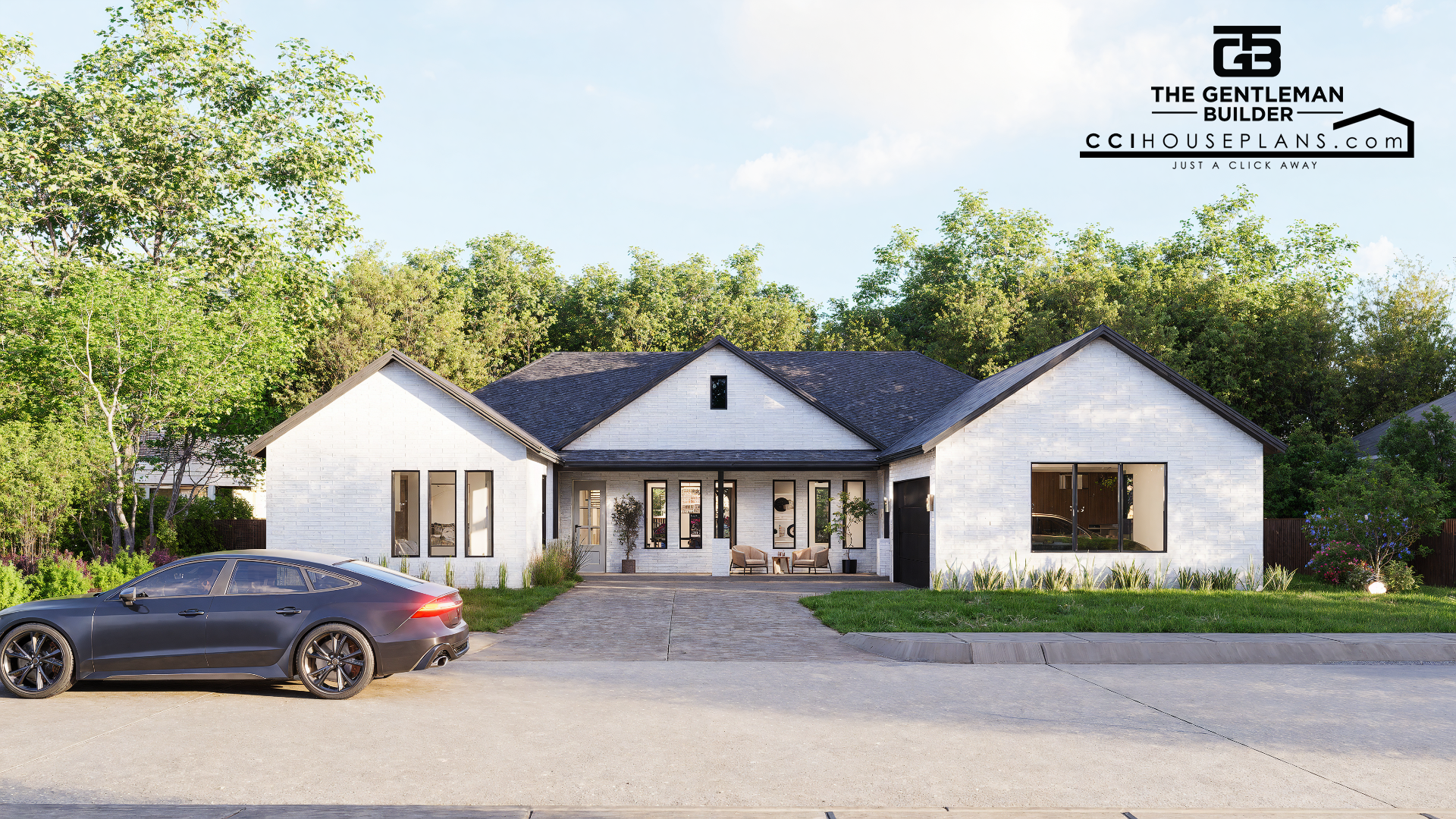

The TGB-058 is a spacious and elegant one-story home designed to combine functionality, privacy, and strong architectural presence.
Conditioned Living Area: 2,827 Sq. Ft.
Courtyard Entry: J-swing configuration creates a private front courtyard, enhancing curb appeal and outdoor living.
Covered Porch: Large covered front porch providing a welcoming entry.
Secondary Bedrooms: Two bedrooms share a private Jack-and-Jill style bathroom.
Primary Suite: Luxurious primary bedroom featuring double separate vanities, a centrally located soaking tub, a separate shower, enclosed WC, and a spacious walk-in closet.
Kitchen Design: Kitchen includes a functional island and connects seamlessly to the main living areas.
Front Dining Room: Dining area located at the front of the home, adding formality and presence.
Outdoor Living: Expansive rear patio ideal for entertaining and relaxation.
For an alternate version of this floor plan and elevation, refer to TGB-045.
$3,648.00
Scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing, fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
Plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
This site plan is not included in your downloadable file. A survey must be provided in order to generate a site plan.
These are generic foundations creating/using basic information and do not reflect exact soil conditions for this site, it is recommended that you engage a certified engineer to conduct a soil survey to ensure that your project is in compliance.
Location of heating and air equipment and duct work.
Drawings showing the actual plumbing pipe sizes and locations.
This is a separate service only provided upon request.
