The TGB-107 is a smart and efficient design created specifically for narrow lots, maximizing depth while maintaining comfortable and functional living spaces.
Conditioned Living Area: 1,650 Sq. Ft.
Total Area Under Roof: 1,898 Sq. Ft. (Includes Garage, Porches, and Patios)
Narrow-Lot Optimization: This layout is ideal for lots with limited width, allowing for longer floor plans without sacrificing functionality.
Primary Suite on Main Level: The primary bedroom is located on the main level, providing convenience and privacy.
Open Social Areas: The kitchen, living, and dining areas are arranged in an open-concept layout, creating a cohesive and inviting main living space.
Guest Convenience: A powder room on the main level serves guests and social areas efficiently.
Upper-Level Private Zone: The secondary bedrooms are located on the upper level and share a full bathroom.
Added Functionality: The design includes a dedicated laundry area, storage room, and mechanical space, ensuring practical everyday living.

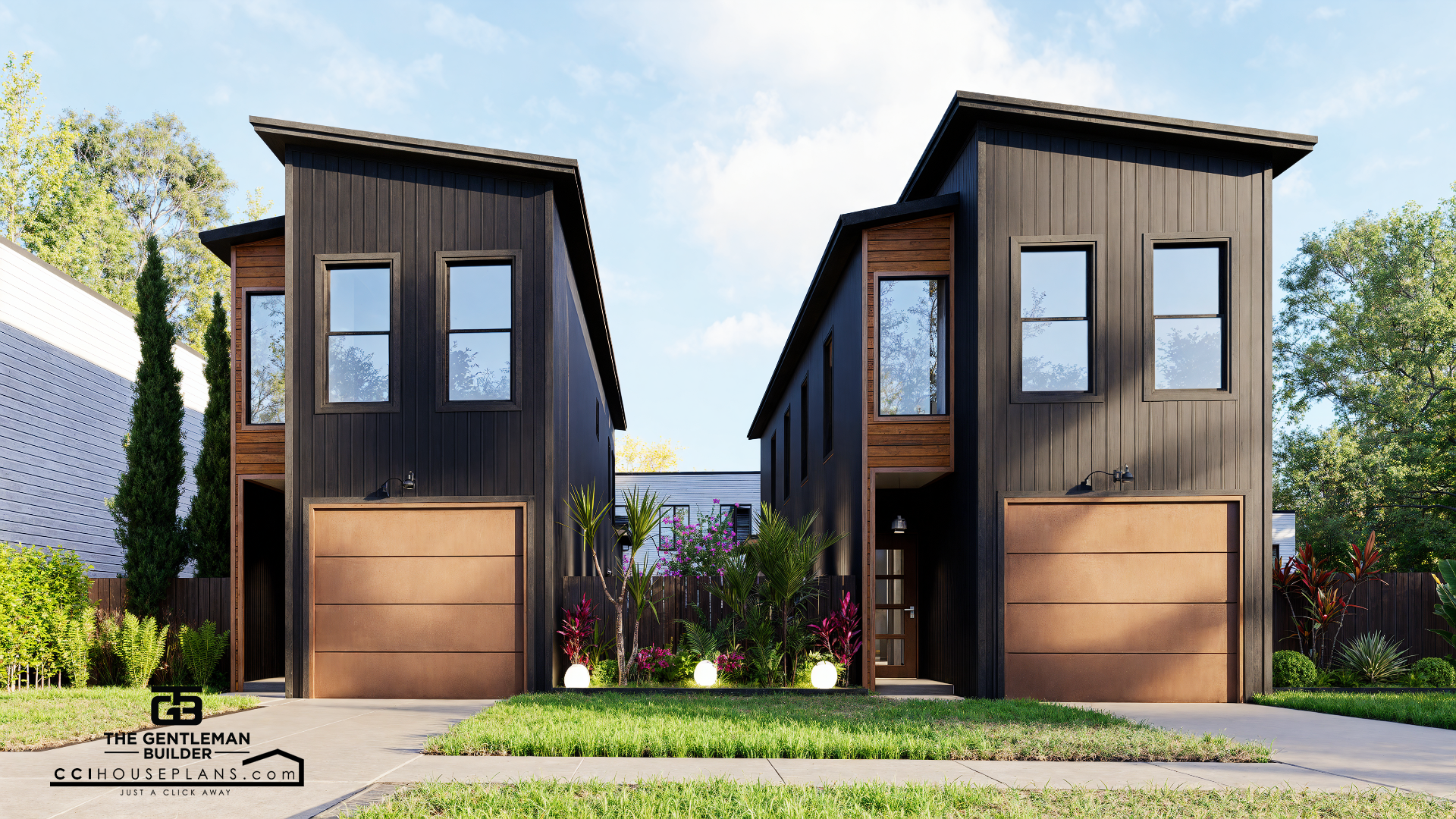

Flexible Project Use: The original concept allows for the plan to be replicated side-by-side, making it suitable for paired or repetitive developments.
$1,898.00
Scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing, fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
Plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
This site plan is not included in your downloadable file. A survey must be provided in order to generate a site plan.
These are generic foundations creating/using basic information and do not reflect exact soil conditions for this site, it is recommended that you engage a certified engineer to conduct a soil survey to ensure that your project is in compliance.
Location of heating and air equipment and duct work.
Drawings showing the actual plumbing pipe sizes and locations.
This is a separate service only provided upon request.
