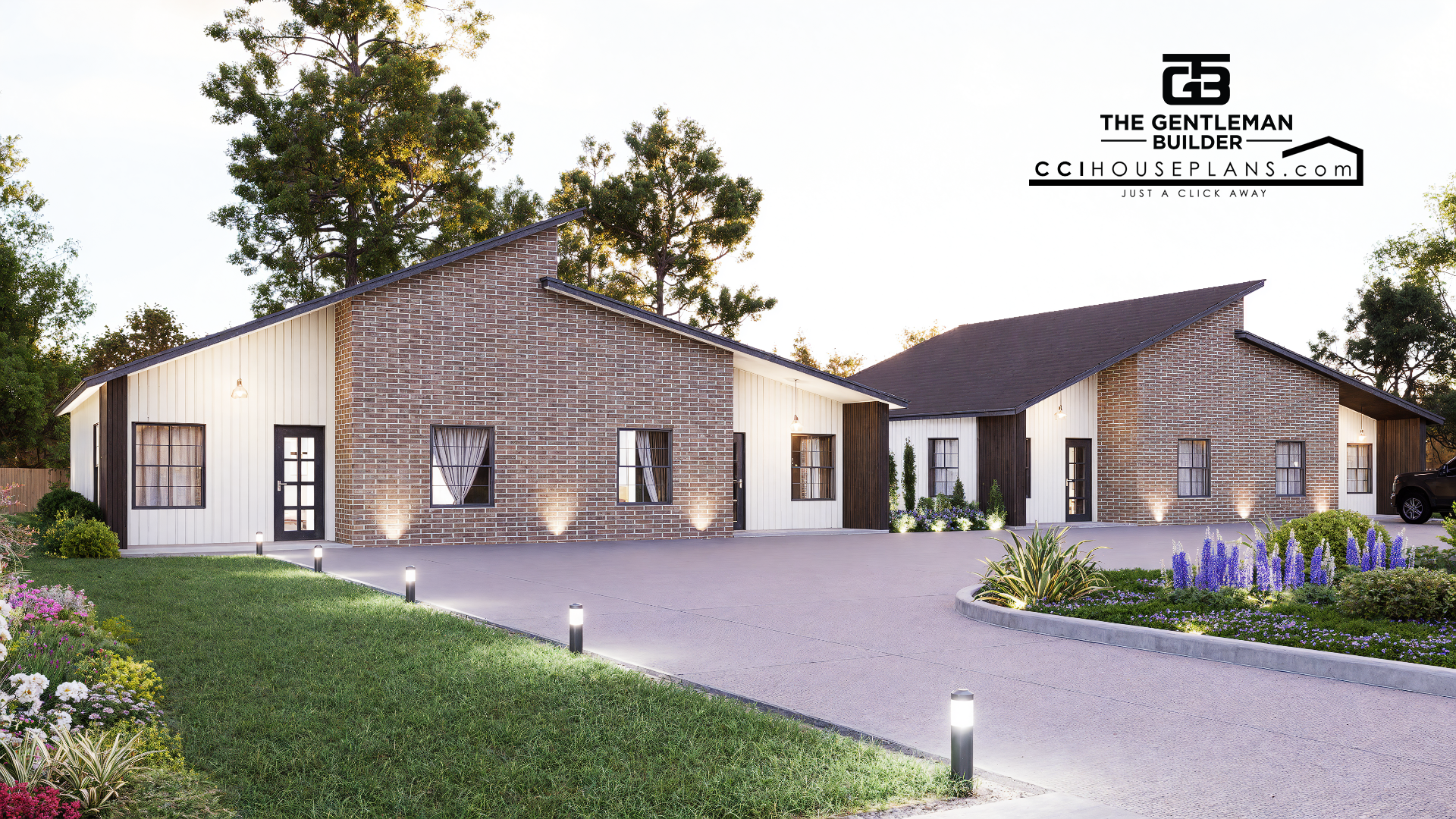

The TGB-088 is a compact duplex design, originally conceived as multi-family with 4 units. The layout is flexible and can also be adapted as a multi-family if required.
Conditioned Living Area: 941 Sq. Ft.
Total Area Under Roof: 999 Sq. Ft. (Includes Garage, Porches, and Patios)
Efficient Multi-Unit Layout: Each unit is thoughtfully designed to maximize functionality within a compact footprint.
Two-Bedroom Configuration: Every unit includes two bedrooms and two full bathrooms, providing comfort and privacy for occupants.
Open Living Areas: The family room connects directly to the kitchen, creating a practical and welcoming open-concept living space.
Private Primary Suite: The primary bedroom in each unit features its own ensuite bathroom and closet.
Parking Flexibility: No garage is included, allowing the project to adapt to lots with designated on-site parking solutions.
$3,996.00
Scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing, fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
Plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
This site plan is not included in your downloadable file. A survey must be provided in order to generate a site plan.
These are generic foundations creating/using basic information and do not reflect exact soil conditions for this site, it is recommended that you engage a certified engineer to conduct a soil survey to ensure that your project is in compliance.
Location of heating and air equipment and duct work.
Drawings showing the actual plumbing pipe sizes and locations.
This is a separate service only provided upon request.
