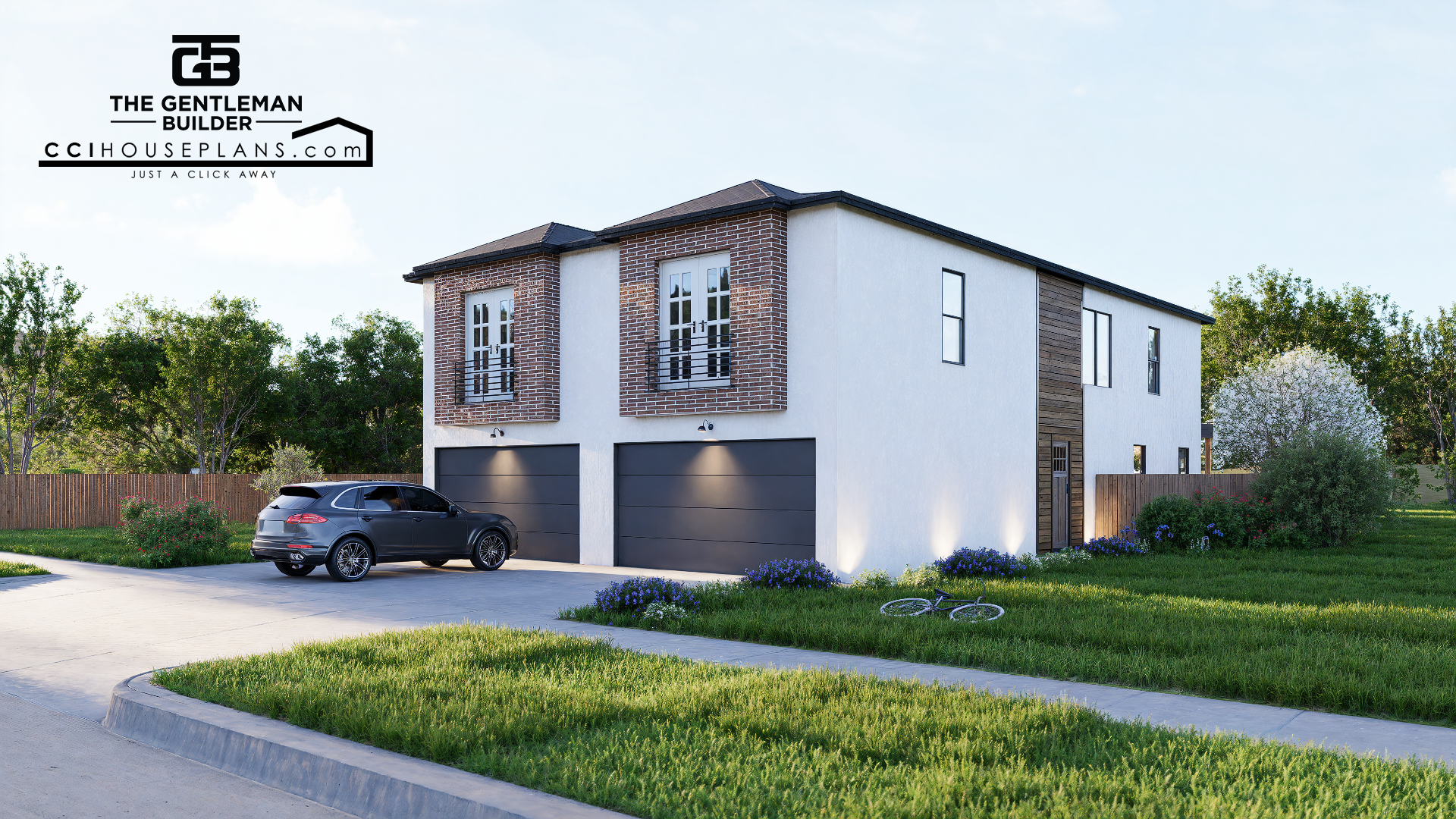

The TGB-075 is a spacious duplex design that combines privacy, functionality, and comfortable living areas, ideal for multi-family developments.
Conditioned Living Area: 1,952 Sq. Ft.
Private Side Entry: Each unit features a lateral entrance, enhancing privacy and separation between units.
Welcoming Entry Area: Laundry room and powder room conveniently located near the entrance.
Open Concept Living: Kitchen, dining, and living areas are fully integrated, offering clear views to the backyard.
Flexible Living Spaces: Includes a versatile flex room suitable for a home office, playroom, or additional living area.
Secondary Bedrooms: Two secondary bedrooms share a full bathroom.
Primary Suite: Spacious primary bedroom featuring a generous walk-in closet and a private bathroom designed for comfort.
$4,778.00
Scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing, fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
Plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
This site plan is not included in your downloadable file. A survey must be provided in order to generate a site plan.
These are generic foundations creating/using basic information and do not reflect exact soil conditions for this site, it is recommended that you engage a certified engineer to conduct a soil survey to ensure that your project is in compliance.
Location of heating and air equipment and duct work.
Drawings showing the actual plumbing pipe sizes and locations.
This is a separate service only provided upon request.
