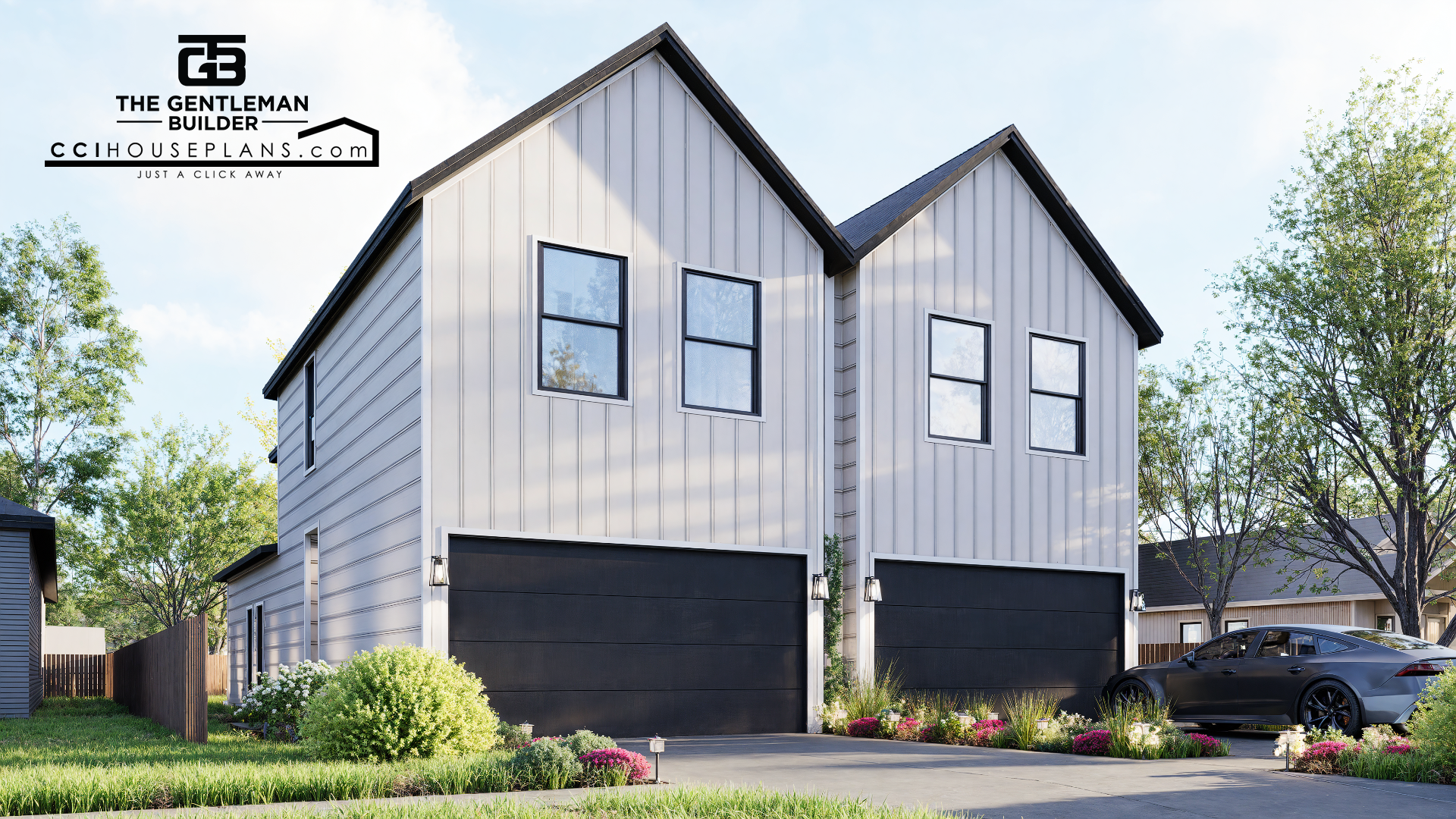

The TGB-061 is a well-designed duplex offering privacy, functionality, and efficient living spaces. Each unit is thoughtfully planned to provide a single-family feel while maximizing comfort and independence.
Conditioned Living Area: 1,814 Sq. Ft.
Duplex Design: Two independent units, each with its own lateral access for enhanced privacy.
Private Entry: Each unit includes a dedicated foyer area with immediate access to the garage and upper level.
Open-Concept Main Level: Kitchen with pantry opens to the dining and living areas, offering pleasant views of the backyard.
Second-Floor Living: Upper level houses the primary suite and secondary bedrooms.
Primary Suite: Features a private bathroom, spacious walk-in closet, and additional storage area.
Secondary Bedrooms: Two bedrooms sharing a full bathroom.
Laundry Area: Conveniently located on the second floor near the bedrooms.
$4,590.00
Scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing, fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
Plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
This site plan is not included in your downloadable file. A survey must be provided in order to generate a site plan.
These are generic foundations creating/using basic information and do not reflect exact soil conditions for this site, it is recommended that you engage a certified engineer to conduct a soil survey to ensure that your project is in compliance.
Location of heating and air equipment and duct work.
Drawings showing the actual plumbing pipe sizes and locations.
This is a separate service only provided upon request.
