The TGB-042 is a thoughtfully designed home with a traditional exterior, created specifically for special restriction cases such as historic districts. This design maintains the appearance of a one-story home while efficiently utilizing attic space to provide additional living area.
Conditioned Living Area: 1,851 Sq. Ft.
Total Area Under Roof: 2,339 Sq. Ft. (Includes Garage, Porches, and Patios)
Traditional Elevation: Designed to blend seamlessly with surrounding one-story homes in restricted or historic areas.
1.5-Story Design: Preserves a one-story street view while incorporating usable attic space.
Main-Level Living: Three bedrooms located on the first floor, including the primary suite.

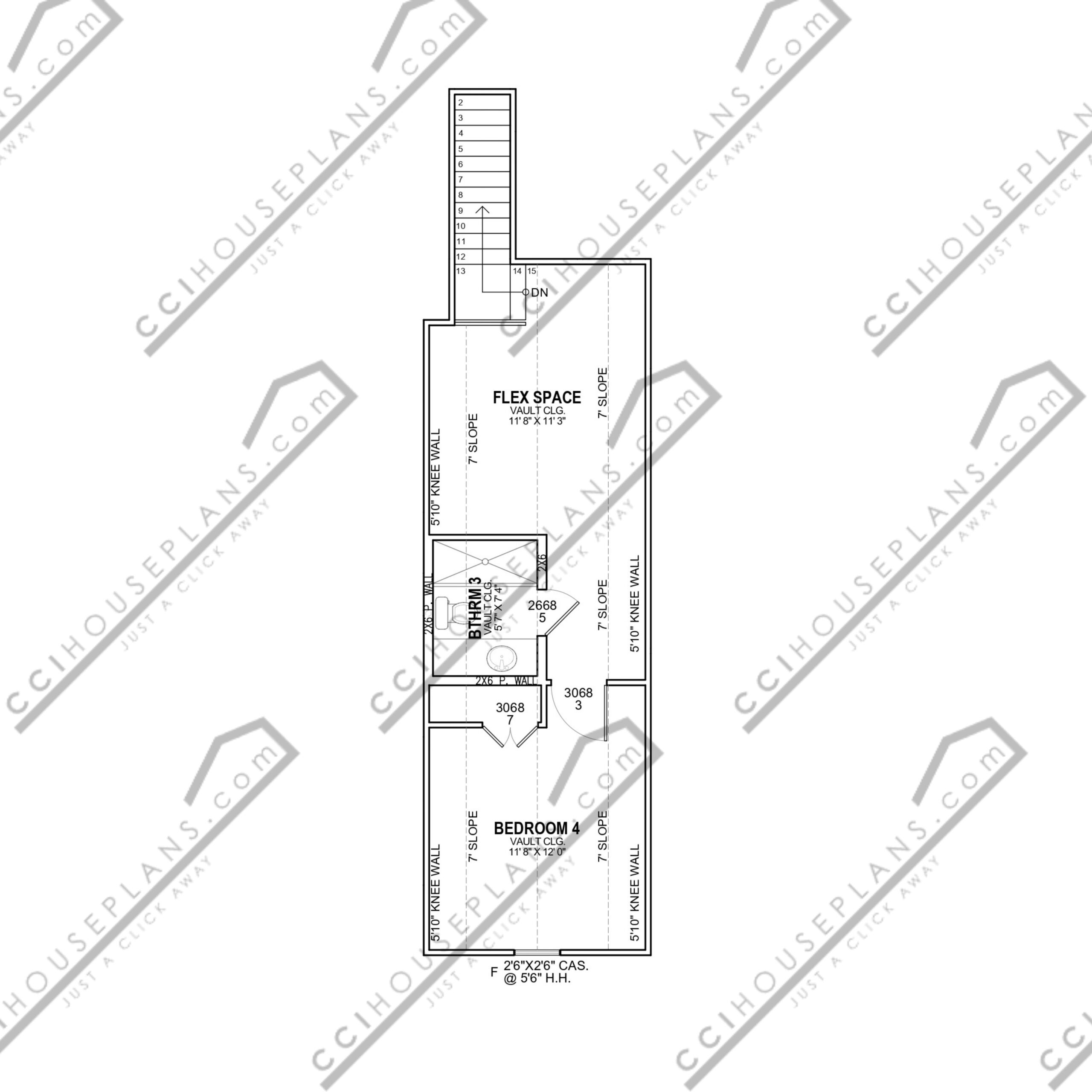

Upper-Level Suite: Fourth bedroom and full bathroom located upstairs, along with a flexible loft space.
Efficient Layout: Ideal solution for maximizing space without altering neighborhood scale.
Roof Design Requirement: The 1.5-story appearance is achieved by maintaining the same or a steeper roof pitch, making this plan better suited for traditional—not contemporary—exteriors.
$2,339.00
Scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing, fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
Plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
This site plan is not included in your downloadable file. A survey must be provided in order to generate a site plan.
These are generic foundations creating/using basic information and do not reflect exact soil conditions for this site, it is recommended that you engage a certified engineer to conduct a soil survey to ensure that your project is in compliance.
Location of heating and air equipment and duct work.
Drawings showing the actual plumbing pipe sizes and locations.
This is a separate service only provided upon request.
